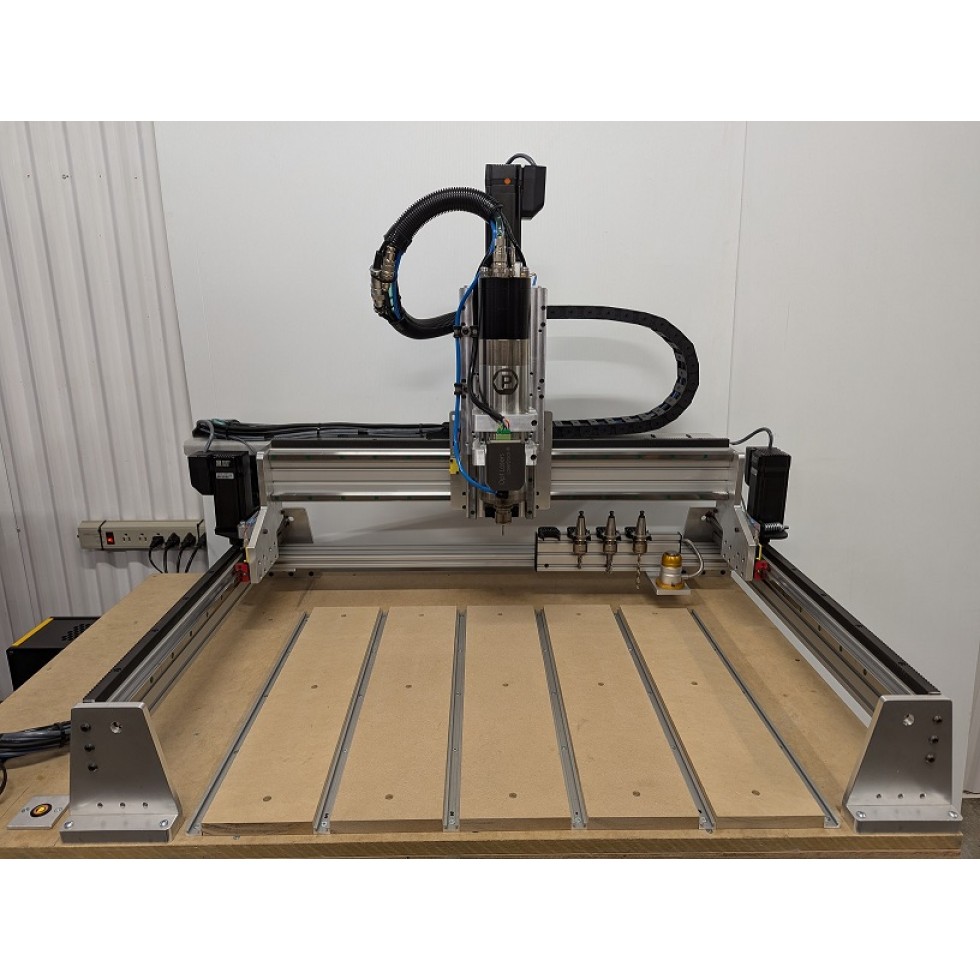

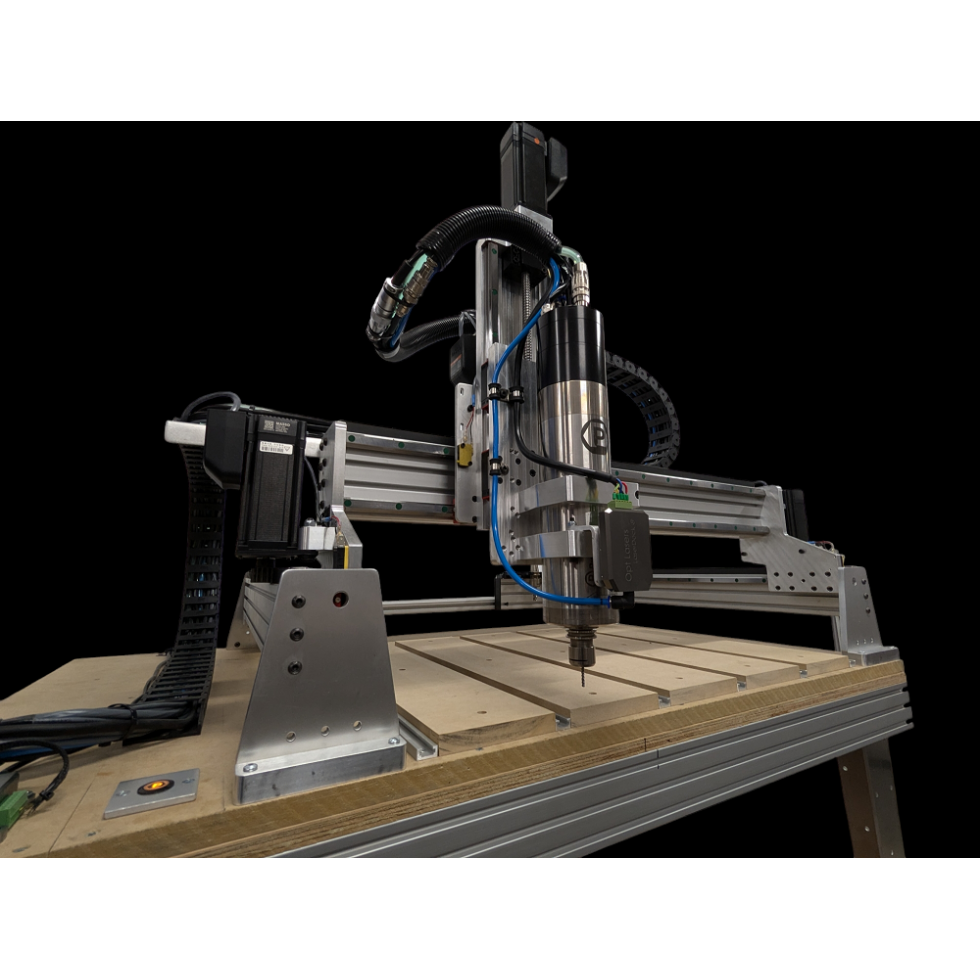

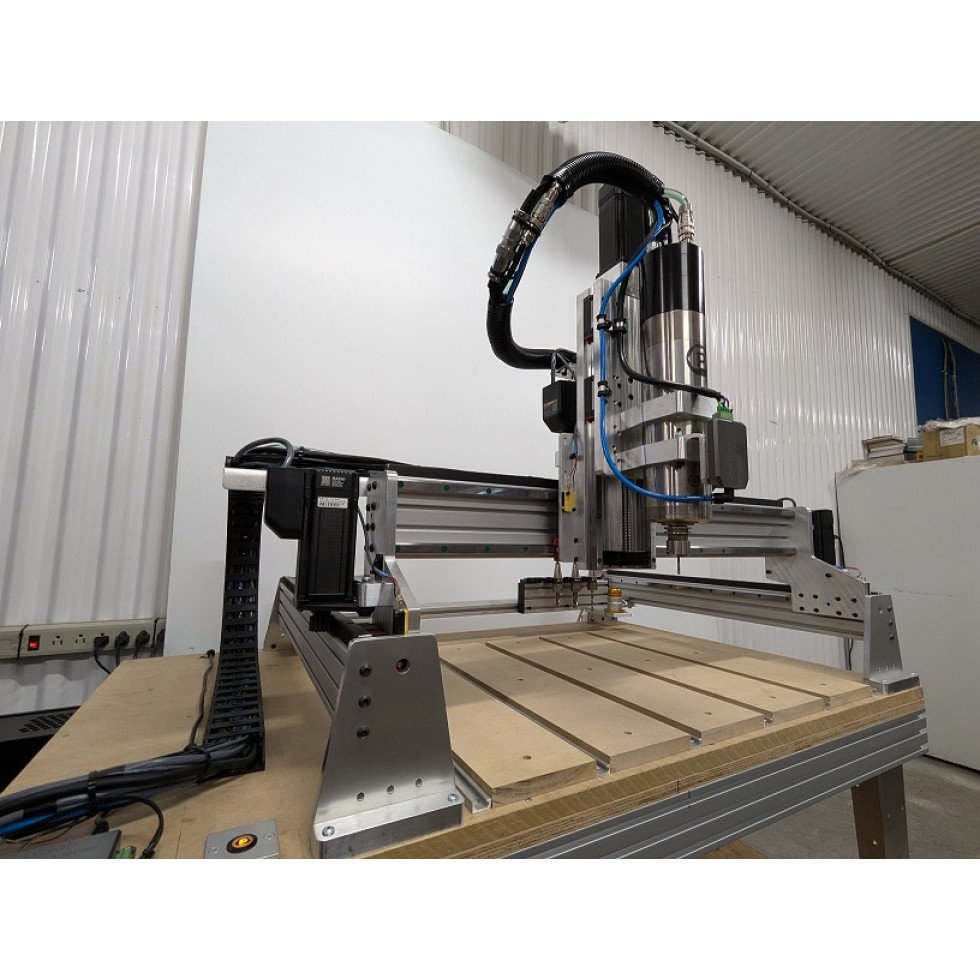

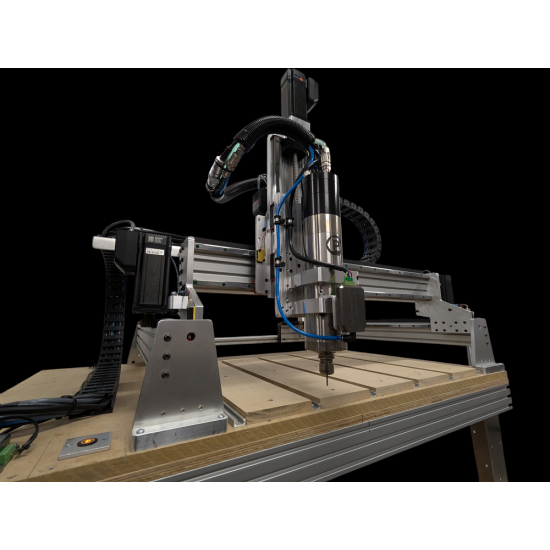

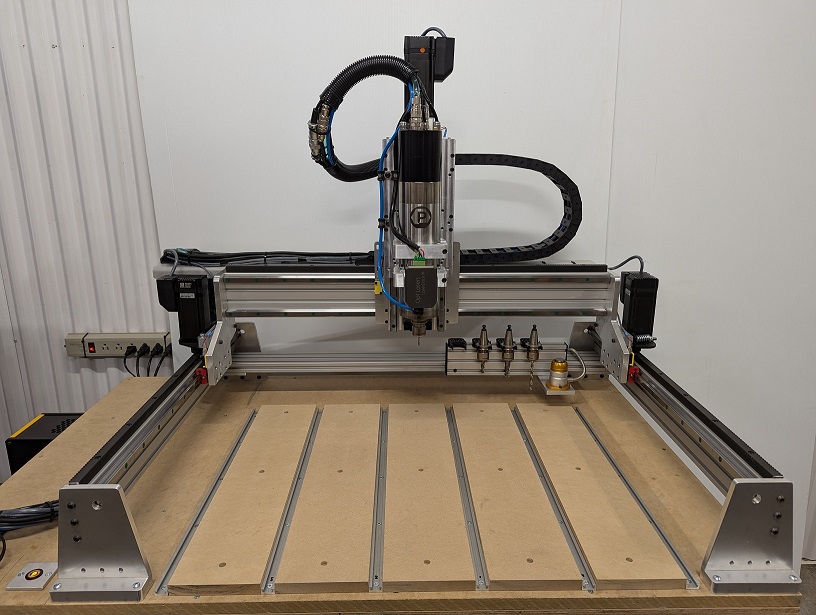

UPSHOT Mill
RACK & PINION FOR SUPER RAPID FEED!
|
Features
- Up to 98” Y travel
- X and Y, **500"/min rapid feed
- All axis linear 4 races 15mm square bearings

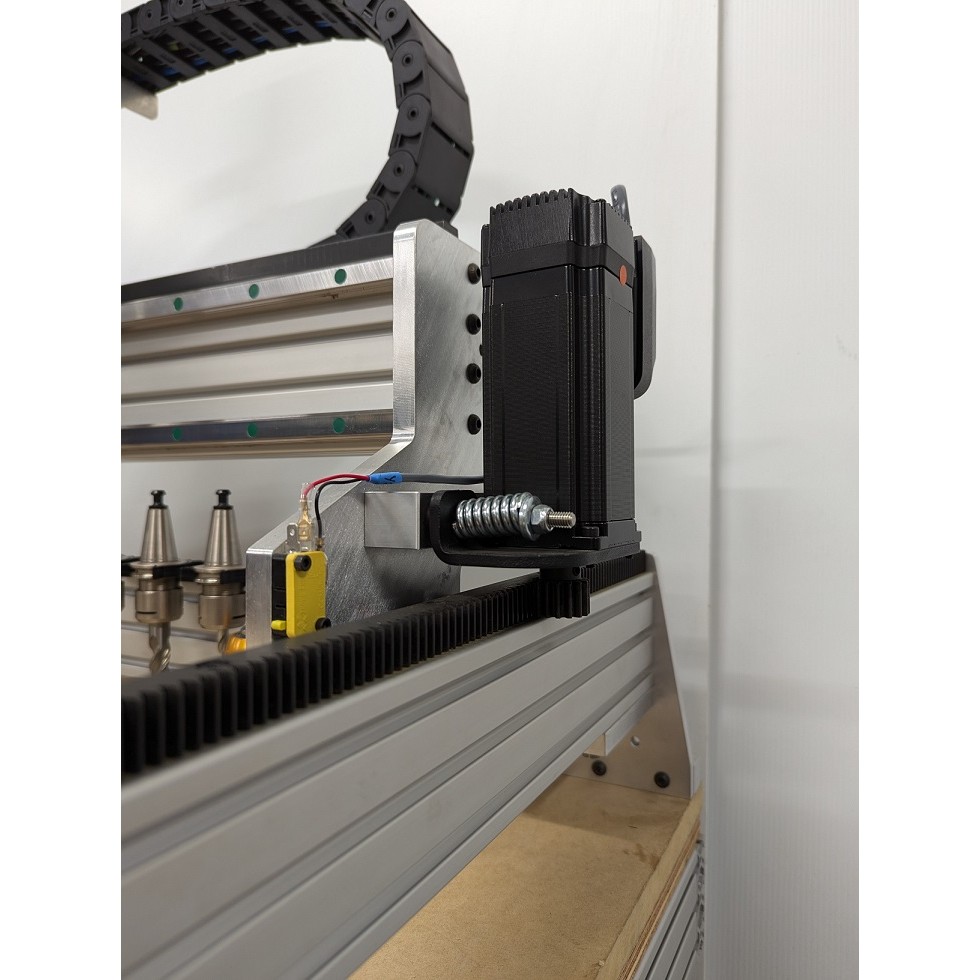

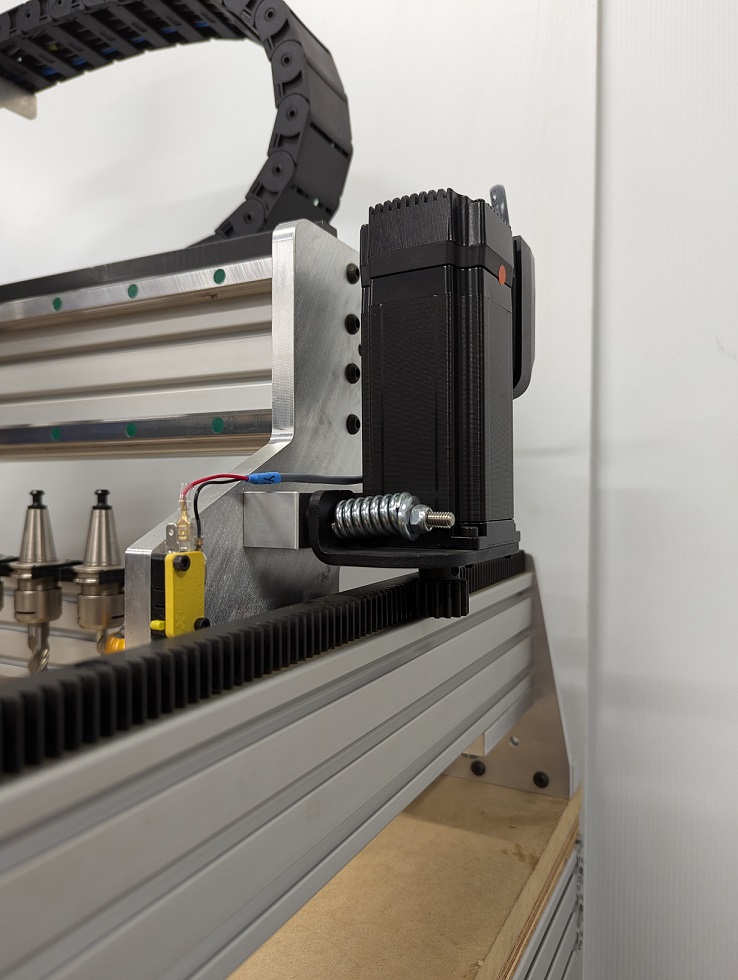

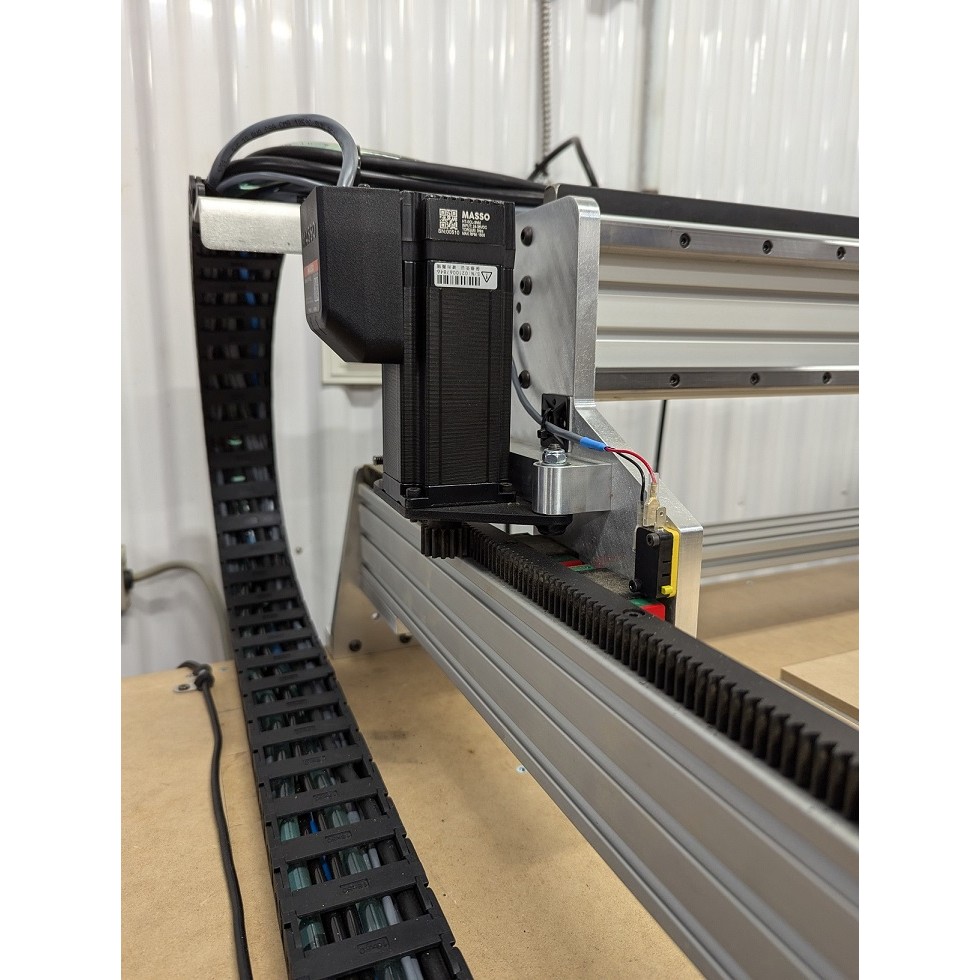

- 15mm Rack and pinion X and Y

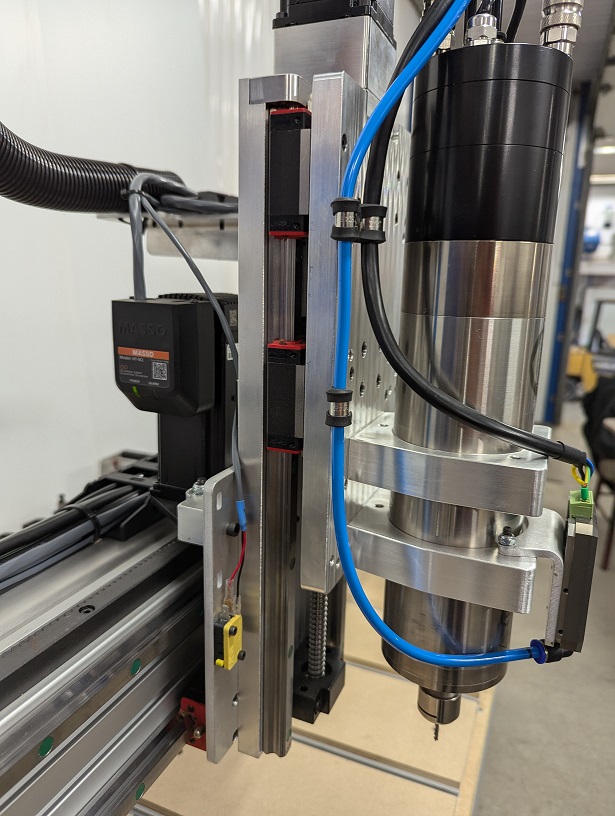

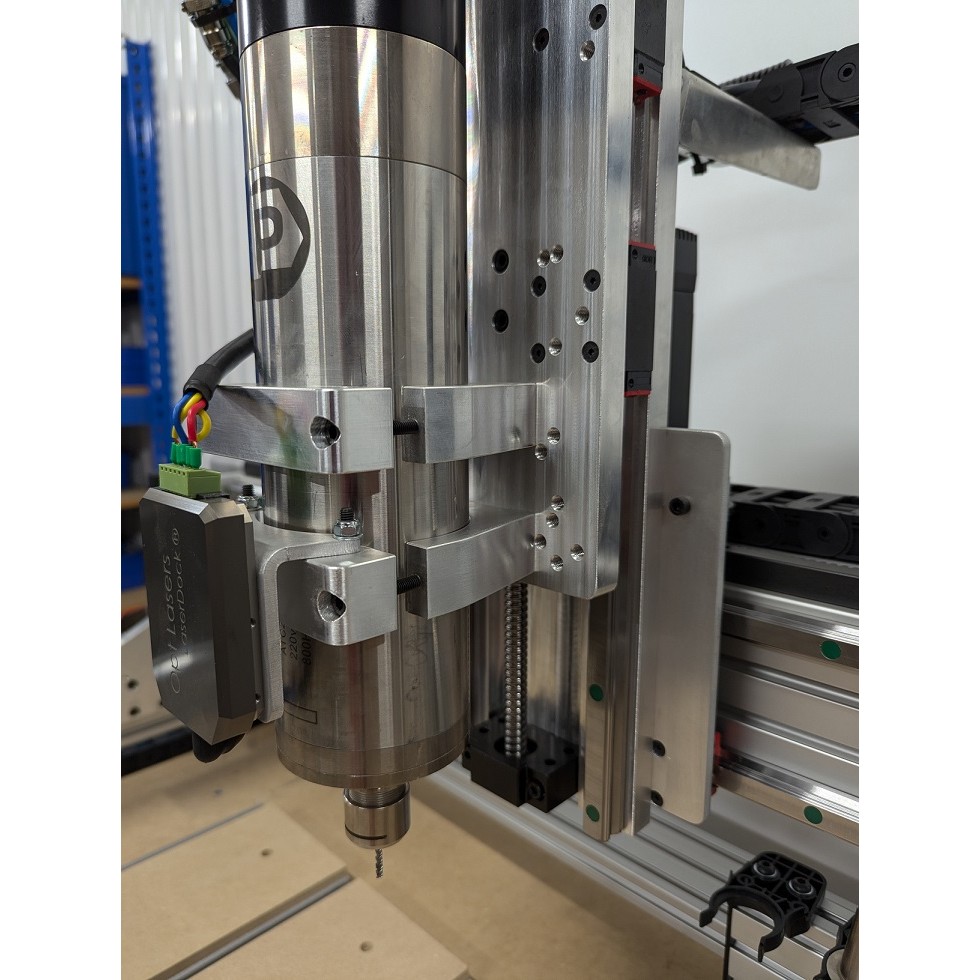

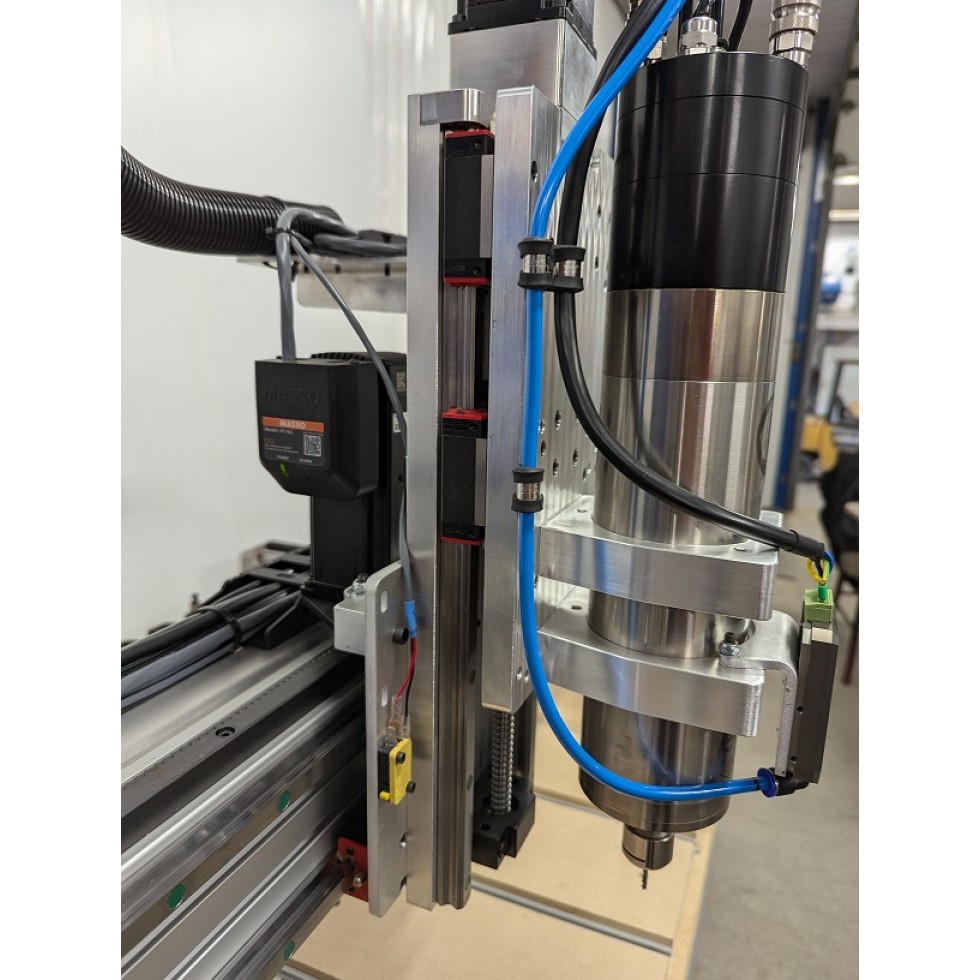

- HD Z axis, Ballscrew driven with 8'' travel
- Rigid all-metal design (heavy-duty aluminum extrusion)
- X sides made from 1/2” thick 6061T6 aluminum
- X beams made from 2" x 4" aluminum American extrusions
- Open style cable chain included
- HD home switches included
- Easy and straight forward assembly, no 1 million parts to assemble!!
- CNC4newbie machining quality and customers service!!
|
 |
|
Specs
- Work Area (travel): up to 50" x 98"
- Footprint (overall dim.): max 68" x 110"
- Clearance below gantry: 8"*
- Cutting Speed X/Y/Z: 300ipm
- Fast travel speed X/Y : **500ipm
- Drive System X/Y: rack and pinions
- Drive System Z: Ballscrew
- Can receive a round body or square body spindle up to 2.2kw
*direct to the table where the machine is fixed.
** With our controllers solutions
NOTE: Work area and Foot prind depend of the size.
|
 |
|
What's included
- All pre assembly axis
- 5.5" wide Z axis
- HD x/y/z home switches

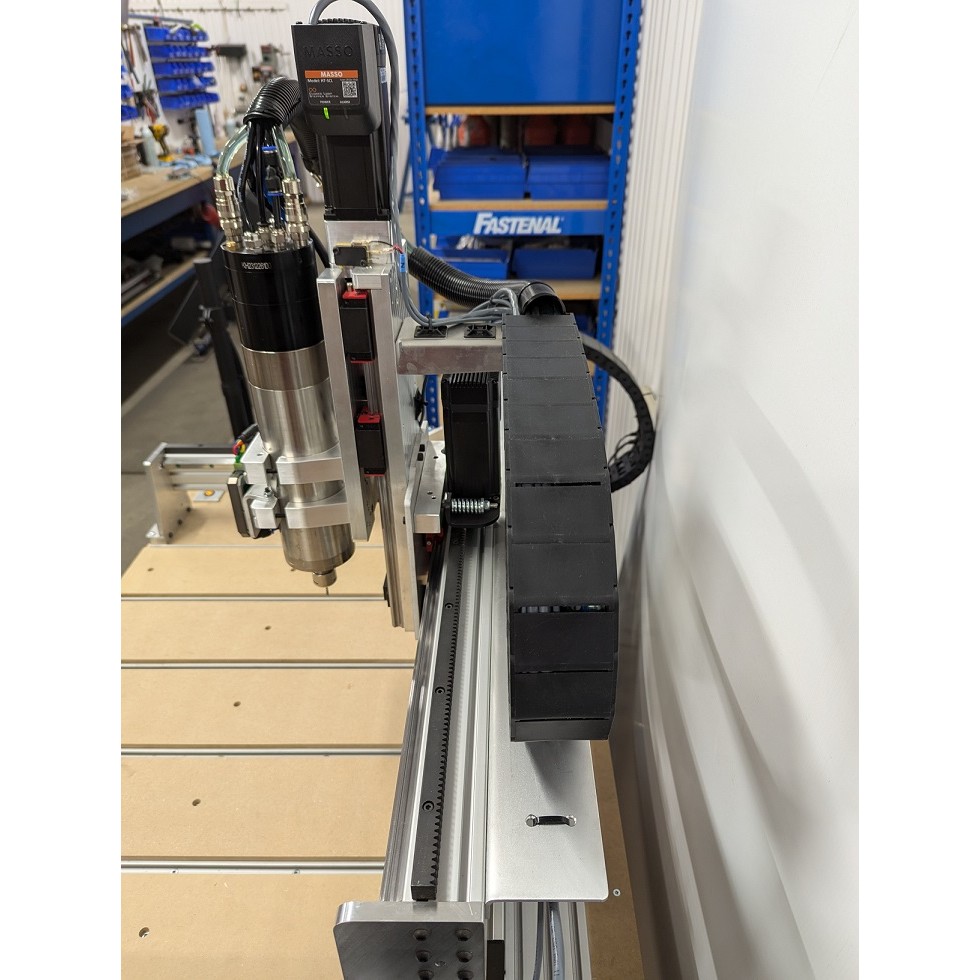

- Open style 18x50mm cable chain for X/Y
- All required fasteners
- 4x stepper motors
- All the wirings for stepper and switches
- Router/spindle mount
|
 |
*** Spindle and MDF Wasteboard pieces are not included ***

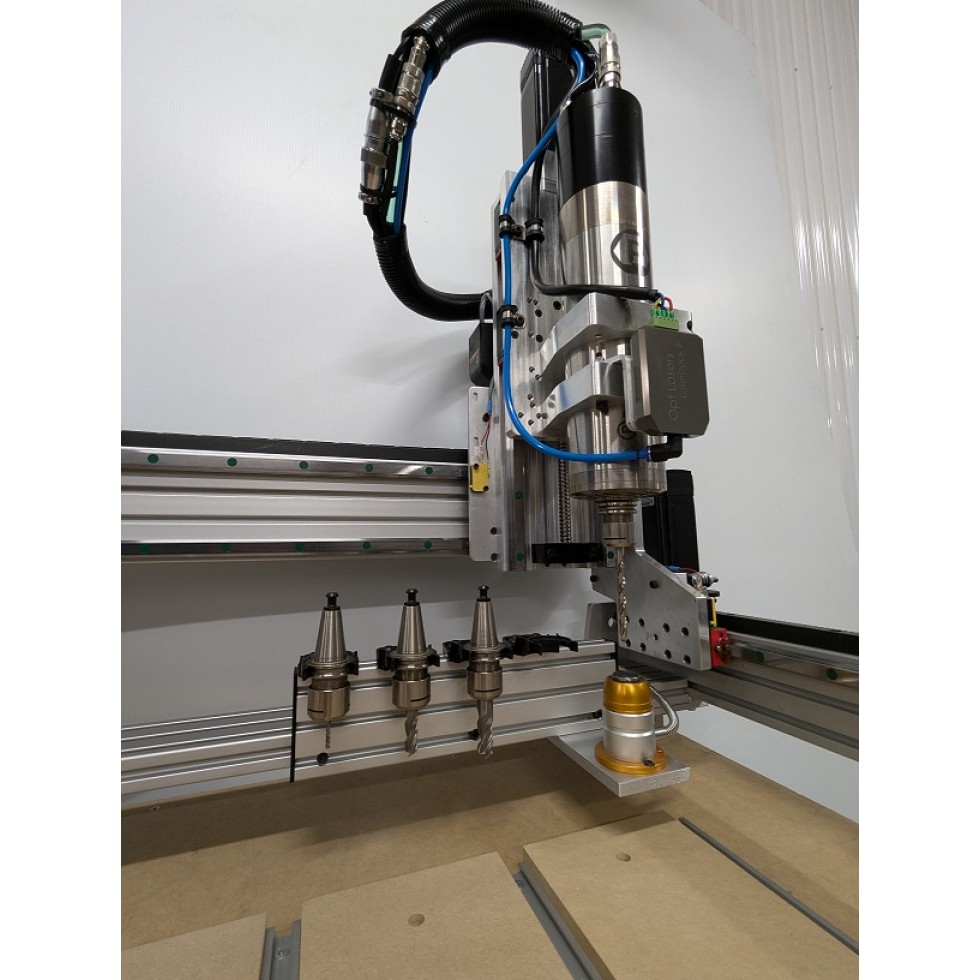

*** T-Tracks, 2nd spindle holder and ATC Tool Rack support are in option ***
Please note: If you purchase only the mechnical system (No controller) the support CNC4newbie can offer will be limited to the mechanical portion. You may need to get assistance and support via forums and the electronics company you purchased through.
NO HAND FITTED PARTS, ALL PARTS ARE REPLACEABLE
If You need a spare part for this z axis, ask we have all parts!!
